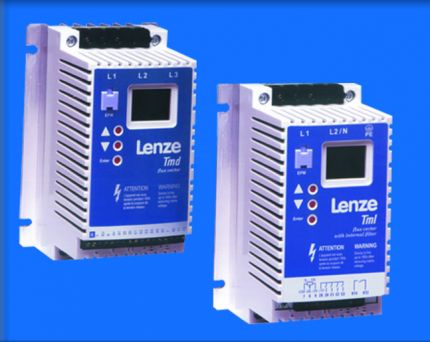

Easy control vector torque inver ters

Range:

• 25-2.2KW 230/240V.
• 37-7.5KW 400/480V.

Features:

• Overload capacity 150% of rated torque for 60 seconds, 200 % of rated torque for 25 seconds.
• Operating modes: V/f linear, V/f quadratic, Vector control, Torque control.
• Switching frequency: 4, 6, 8, 10 KHZ.
• Output frequency: 0 -240HZ.
• Up to 4 freely programmable digital inputs.
• Up to 2 freely programmable digital outputs.
• Up to 2 analog inputs (0-5V, 0-10 V, 0-20 mA, 4-20 mA.
• Up to 1 analog output (0-10 V, 0-20 mA, 4-20 mA; resolution 10 bits)
• One relay output (also for direct 240 V AC mains connection).
• Communication: RS485 (Modbus or LECOM B).
• Protections against: Short circuit, earth fault, over voltage, under voltage, motor stalling, motor overload.
