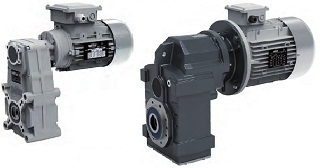

Helical parallel gearboxes are characterised by a high degree of modularity: starting with a basic body, it can be configured as needed, using different input and output kits.

Available versions:

  1. FT Series: 0.09 - 1.5 kW, 12 - 655 Nm, ratios 20 - 929
  2. ATS Series: 0.12 - 4 kW, 10 - 700 Nm, ratios 5.87- 386.5
  3. ITS Series: 0.25 - 22 kW, 500 - 3200Nm, ratios 5.66- 405.42

Features:

  • 2- and 3-stage gearboxes
  • Housing: Die-cast aluminum (FT/ATS), Cast iron (ITS).
  • Permanent synthetic oil long-life lubrication.
  • High degree of modularity thanks to the diverse input/output kits.
  • Coupled to motor with flexible coupling (ITS).
