Low noise, robust and versatile

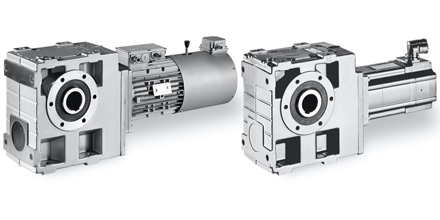

The helical-worm gearbox is a particularly low-noise drive component.

As a compact drive unit in combination with three-phase AC and servo motors, they are extremely versatile. They have a 2- and 3-stage design and can achieve a torque of up to 11063 lb-in (1250 Nm) and a ratio of up to i=1847.

Advantages:

• 2- and 3-stage gearboxes
• Hollow-shaft with keyway or shrink disc
• Solid-shaft with keyway
• Foot or flange mounting
• Torque plate, including rubber buffer

Can be combined with the following motors:

• With three-phase AC motors in line with the ErP Directive in the power range from 0.16 to 20 Hp (0.12 to 15 kW)
• With ser vo motors in the power range from 0 .25 to 11.3 kW
• Drive Package versions in conjunction with the decentralized Inverter Drives 8400 motec cover a power range of up to 10 Hp (7.5 kW)
