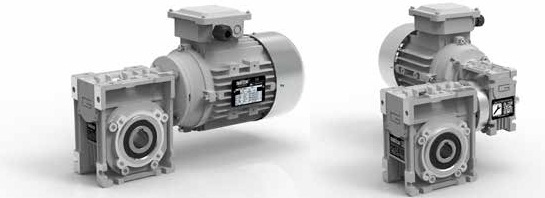

WORM GEARBOXES CM/CMM

The CM is one of Transtecno’s most widespread gearboxes and made extremely ver satile using different input and output kits for wormgearboxes.

The Double Reduction Wormgearboxes from the CMM series combine two wormgears and an AC motor, for wormgearmotors with a high torque level.

Available versions:

1. CM Series: 0.06 - 7.5 kW, 15 - 1050 Nm, ratios 5 - 100 .
2. CMM Series: 0.06 - 1.85 kW, 18 - 2450 Nm, ratios 75- 3600 .

Features:

• Permanent synthetic oil long-life lubrication.
• Housing: Die-cast aluminum (up to size CM090), Cast iron (sizes CM110, CM130).
• Double taper roller bearing on sizes 090, 110 and 130.
• High degree of modularity thanks to the diverse input/output kits.
